Features
- We offer a full line of felt materials and micron ratings
- Conventional sewn bags or the PolyWeld® welded seam bags available
- FSI PolyLoc® ring or other common bag rings available on most bags
- Heavy Duty and Extended Life designs available to suit your filtration needs

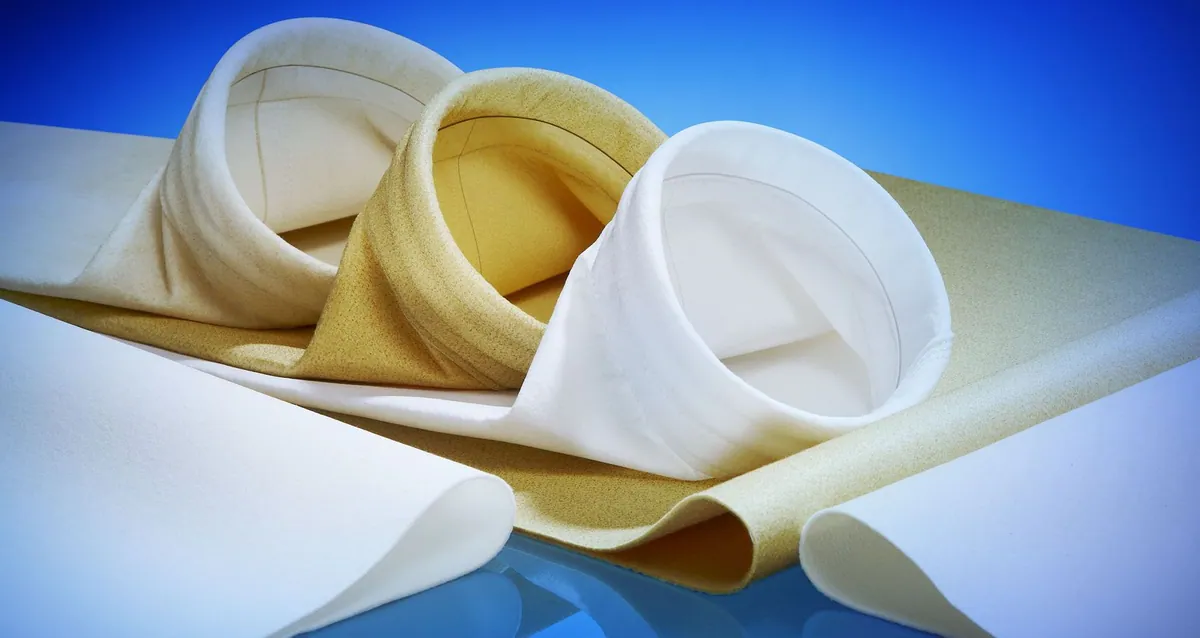

About Standard Felt Filter Bags
When it comes to felt filter bags, FSI has the answer. Our years of experience give us an advantage over our competitors, and our felt filter bags show it. Our felt bags are designed to withstand higher solid loading, and are suitable for applications using vessel or open filtration systems.
FSI’s “Comprehensive Manufacturing Control” philosophy insures that we will maintain our status as the industry leader in all phases of the filter business. Our integrated technology, control over our manufacturing and quality leads to consistent performance. With FSI filter bags, you can count on a quality product every time.
We start with the finest material possible. FSI makes its own fiber to produce the felt material used in our felt filter bags inhouse, guaranteeing the highest quality. Our Extended Life filter bag provides superior filtration of all sized particles, as well as up to twice the dirt holding capacity of a standard filter bag.
Our no-bypass welded seams eliminate the possibility of fluid bypass through needle holes. We provide a variety of glazed and singed finishes to inhibit fiber migration. FSI also offers polyester inserted felts. These inserted felts include a reinforcing scrim needled inside the felt material, to provide added strength and durability, when a restrainer basket is not being used.
Specifications
| Filter Media | Felt, high temperature Felt, nylon Felt, polyester Felt, polypropylene Felt, Teflon® |
| Maximum Operating Temperature | Polypropylene: 200-220° F (93-104° C) Polyester: 275-325° F (135-162° C) Nylon: 275-300° F (135-149° C) High Temperature: 400-450° F (204-232° C) Teflon: 450-500° F (232-260° C) |
| Micron Rating | Polypropylene: 1, 3, 5, 10, 25, 50, 100 Polyester: 1, 3, 5, 10, 25, 50, 75, 100, 200 Nylon: 5, 10, 25, 50, 100 High Temperature: 5, 10, 25, 50, 100, 200 Teflon: 1, 5, 10, 25 |
| Cover | Plain Polyester multifilament Nylon monofilament |
| Sizes | 1: 17.78 cm x 40.65 cm 2: 17.78 cm x 81.28 cm 3: (10.16 cm x 20.96 cm 4: 10.16 cm x 35.56 cm 5*: 17.46 cm x 86.36 cm 6*: 17.46 cm x 41.91 cm 7: 13.97 cm x 40.64 cm 8: 13.97 cm x 55.88 cm 9:13.97 cm x 83.82 cm |
| Ring | Polypropylene PolyLoc® Polyester PolyLoc® Nylon PolyLoc® Cuno Snap ring metal Stainless steel snap ring Commercial steel ring Commercial plastic ring Ronningen-Petter snap ring Ronningen-Petter plastic ring Ronningen-Petter flange |
| * SIZES 5, 6, AVAILABLE WITH S RING ONLY ** AVAILABLE IN SIZES 1 AND 2, POLYPROPYLENE AND POLYESTER NON-INSERTED ONLY |
|---|
